BTA DRILLING MACHINES




Complete solution in BTA Drilling

BTA Drilling is a process developed in more recent years, with BTA drilling the coolant is introduced around the drill tube at the pressure head, and chips are evacuated through the center of the drill. The detachable drill head is comprised of individual carbide inserts and guide pads. Very high penetration rates can be achieved with this system along with good surface finish. Diameters as small as .500" (12.7 mm) or as large as 15.00" (381mm) can be produced with this type of system.

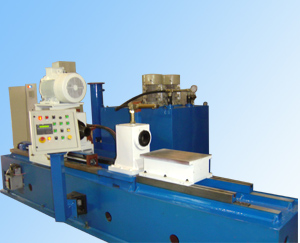

B TA Drilling Machine (custom-made)

Drilling Range : DIA 25 mm DIA 70 mm

Drilling Depth : 1300 mm

Component Holding Length
with Counter Rotation (Shaft) : 1500 mm

Spindle Speed : Variable

High Pressure Coolant System with filtration

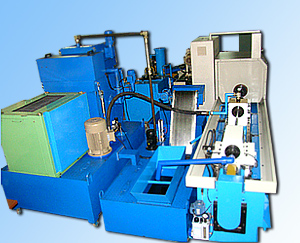

B TA Drilling Machine (custom-made)

Drilling Range : DIA 18 mm DIA 40 mm

Drilling Depth : 600 mm

Component Holding Length : 700 mm

Spindle Speed : Variable
High Pressure Coolant System with filtration









Single Spindle BTA Drilling Attachment

Drilling Range : DIA 12 mm DIA 50 mm

Drilling Depth : 1000 mm

Max. Spindle Speed : 0 2000 rpm
High Pressure Coolant System with filtration








Two Spindle BTA Drilling Attachment

Drilling Range : DIA 12 mm DIA 30 mm

Drilling Depth : 1000 mm

Max. Spindle Speed : 0 4000 rpm
High Pressure Coolant System with filtration
